Wire Mesh

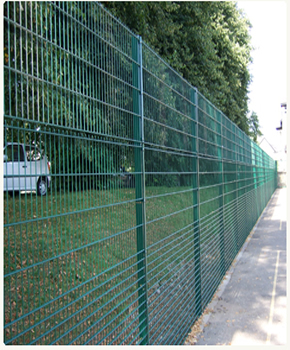

Wire Mesh is a popular fence system for commercial, schools and industrial uses. It is especially designed for a wide range of uses where an aesthetically pleasing appearance is essential.

Our high security version features a toe and finger-proof mesh aperture and combines and anti-climb and anti-cut fence with excellent visibility and resistance to vandalism.

The panels incorporate a pressed 'V' beam which provides additional strength and support.

Wire Mesh Panels are available in most RAL colours, just call us for details.

Product Options


Master view
Mesh Pattern 200 x 50mm mesh size with profiled beams for rigidity.
Horizontal Wires 6mm
Vertical Wires 5mm
Finish Polyester coated with a galvanised substrate
Presentation No barbs on top panels
Height
Available in heights of:

1.8m
2.0m
2.4m


358 Mesh
Mesh Pattern 76.2mm x 12.7mm resistance welded at each intersection
Horizontal Wires 4mm diameter at 12.7mm centres
Vertical Wires 4mm diameter at 76.2mm centres
Finish Polyester coated with a galvanised substrate
Presentation Overlapped 75mm minimum at each post.
Height
Available in heights of:
1.27
2.4
2.7
3.0
3.3
3.6
4.0
4.5
4.8
5.2


Nylofor 3D
Mesh Pattern 200mm x 50mm resistance welded at each intersection
Horizontal Wires 5mm dia at 200mm centres
Vertical Wires 5mm diameter at 50mm centres
Finish Polyester coated with a galvanised substrate
Presentation All panels have a 30mm barbed top edge.
Height
Available in heights of:
Available in heights:
1.7m
2.0m
2.4m


Axis-C   wire mesh

Wire Size
The panels comprise single 5mm horizontal wires and single 5mm vertical wires constructed in a 200mm x 50mm configuration.

Panel Size
The standard panel is 2500mm wide and is available in heights up to 2630m which includes a 30mm spike protruding at the top of the panel.

Colours available
Galvanised and polyester powder coated
Standard colours: RAL 6005 green, 9005 black,5010 blue, 3000 red, 9010 white
Other RAL colours available on request



York Vale Fencing also has a range of secure double or single leaf gates available. Wire Mesh gates can also be completely automated. See more details

These are just a few of the many different Wire Mesh styles we have available. For more information or advice please ring us on 01759 306783 or 07850 856833 and we will be happy to help.
